60A Dual high power H-bridge optocoupler isolated DC motor driver module

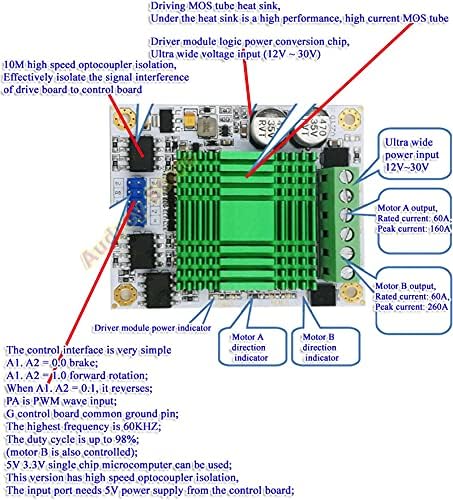

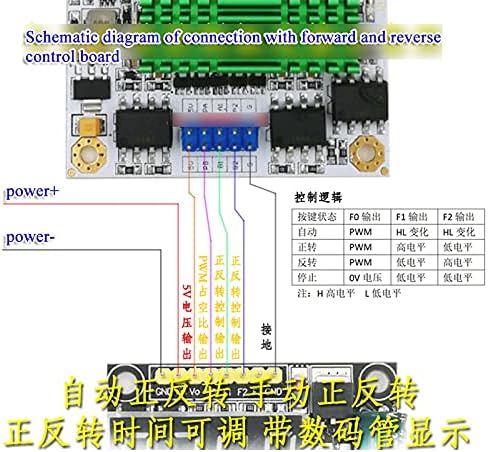

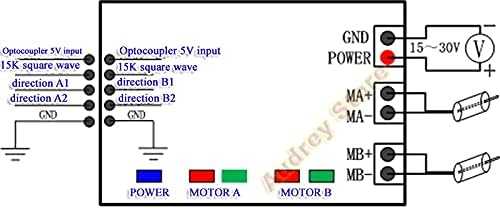

Optocoupler isolation plate,The module uses a 10m high-speed optocoupler to isolate the input signal,It can effectively prevent the interference of driving board interference signal to the control board,Make the system more stable and reliable.This module can be used to drive general DC motor,The maximum current is 60A,Stable performance,It is incomparable to the general integrated motor drive,Therefore, it is very suitable for robot competition, chariot competition, Freescale competition and so on.of course,The motor drive module is also very suitable for beginners of motor control,Because it's very simple to control,See the description below for details.Features of driver module:1. The basic components of the drive module body are patches,High integration,The layout of the board is well designed,It's very beautiful,It's very small,On board two-way high-power DC motor drive,The size of the drive module is only 80mm * 56mm.2. The wide heat sink can effectively dissipate heat for the drive module under high current,Keep the good stability of the module.3. When driving the motor,The maximum rated current of the module can reach 60A,The on resistance is only 0.003 ohm.4. High switching frequency,Up to 60KHZ,In this way, the unpleasantness caused by low frequency of motor debugging is effectively avoided.5. The control interface is very simpleWhen A1. A2 = 0.0, it is braking.When A1. A2 = 1.0, it is positive rotation.When A1. A2 = 0.1, it is reversed.PA is PWM wave input (motor speed regulation).G is the common ground pin with the control board (circuit B is the same control).6. Both 3.3V and 5V MCU can control this module,Only one circuit of motor power supply (12V ~ 30V) is needed.Mechanical parameters of drive module:1) Length width height = 70mm * 56mm * 19mm.2) There are f

• Motor type: DC Motor
• Certification: NONE
• Origin: Mainland China
